Garage Door Installation
Jim’s Garage Doors installs new and replacement residential garage doors, including the tracks, guides, lifting hardware and compatible automatic opener required for the complete system to operate correctly.
A successful installation starts before the door is fitted. The garage opening, headroom, side clearance, mounting surfaces, internal operating space and automation requirements first need to be checked so the door can be installed to suit the actual property.
Whether you are replacing an existing garage door or fitting a door to a new garage, Jim’s Garage Doors can assess the installation requirements and provide a quote for the work.
Quick Links
What Does Professional Garage Door Installation Include?
Garage door installation involves fitting and setting up the complete operating system, not simply attaching a door to an opening. The door, tracks or guides, lifting system, mounting hardware and automatic opener must all be positioned and adjusted so they work together.
The exact work changes depending on whether the project is a new installation or a replacement of an existing garage door.

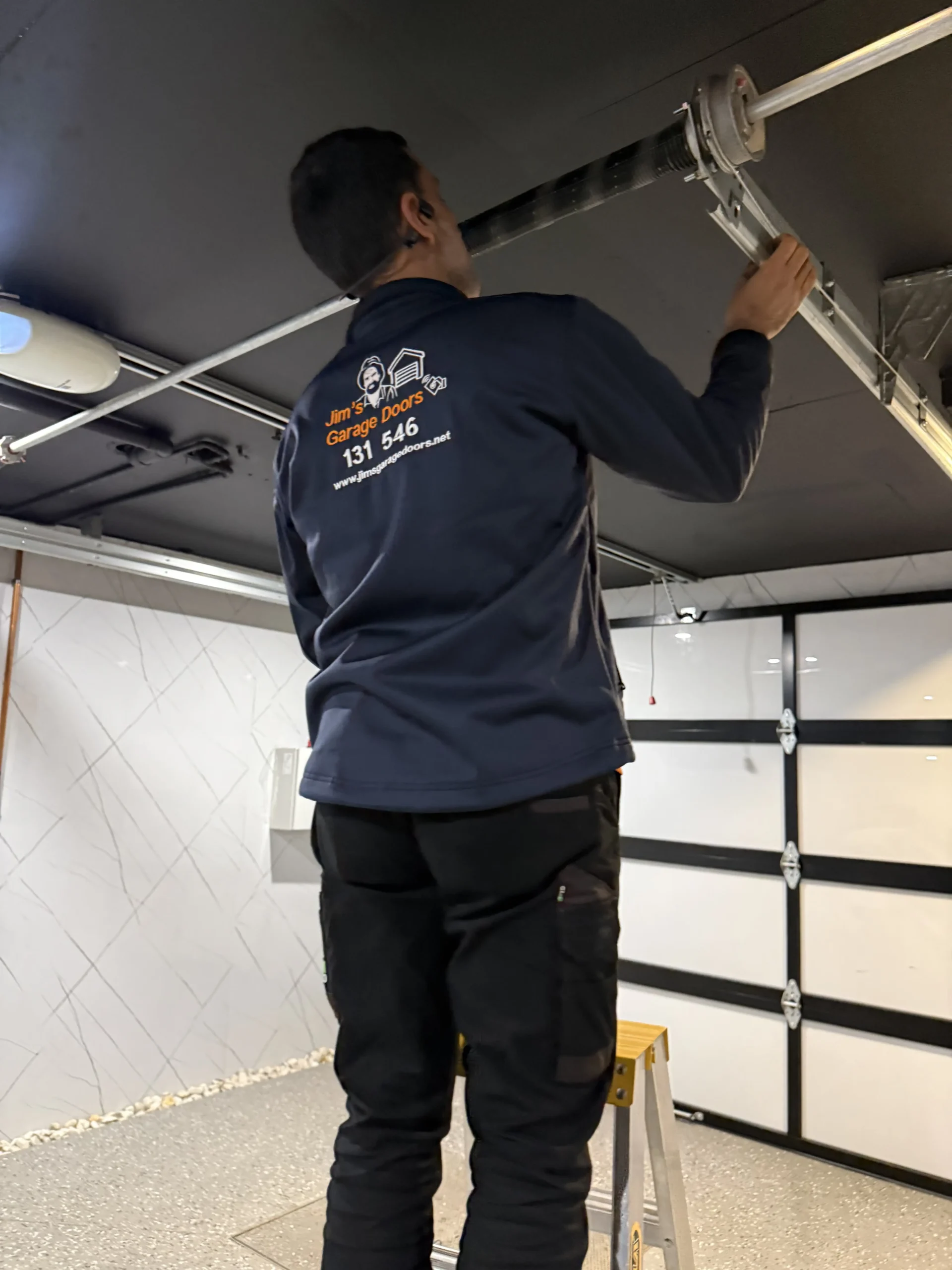

Opening Assessment
The installation begins by checking the garage opening and the space around it. Width and height matter, but so do headroom, side room, internal clearance and the surfaces available for mounting the door hardware.
Door System Installation
The required guides, tracks, brackets, lifting components and door sections or curtain are installed according to the operating system being fitted.
Setup and Testing
Once the door is assembled, its movement, alignment and operation are checked. Where automation is included, the opener is installed and configured as part of the completed system.
What Should Be Checked Before a Garage Door Is Installed?
The garage opening and surrounding structure should be assessed before installation because the door requires more space than the visible opening alone. Tracks, guides, brackets, springs and an automatic opener all occupy space around or behind the doorway.
An assessment also helps identify site conditions that may need to be resolved before installation begins.
Installation Assessment Checks
Headroom above the opening
Side clearance
Internal ceiling clearance
Mounting surfaces
Floor and opening condition
Existing door and hardware
Automatic opener requirements
This assessment is particularly important when an older garage door is being replaced, because the dimensions or hardware of the existing system do not automatically determine what should be used for the new installation.
Why Are Garage Door Installation Measurements More Than Width and Height?
The opening dimensions determine whether the door fits, while the space around the opening determines whether it can operate. A garage may have sufficient width and height for a door but still require a different installation configuration because of limited headroom, side clearance or ceiling space.
| Installation Area | Why It Matters | What It Can Affect |
|---|---|---|
| Opening Width | Determines the width the garage door needs to cover | Door dimensions and positioning |
| Opening Height | Determines the vertical garage entrance that must be closed | Door size and operating travel |
| Headroom | Provides space for tracks, a roller drum or other lifting components | Door configuration and hardware positioning |
| Side Room | Provides mounting space beside the garage opening | Guides, tracks, brackets and hardware |
| Ceiling Space | Some systems travel back into the garage when opening | Track layout and automatic opener position |
| Floor Level | The bottom of the closed door meets the garage floor | Final closure and gaps beneath the door |
Measuring only the visible opening can overlook the space required by the operating hardware. The installation needs to be considered as a complete moving system rather than as a door panel fitted into a rectangular hole.
How Is Replacement Garage Door Installation Different From a New Installation?
A replacement installation includes dealing with the existing door before the new garage door can be fitted. The old door, tracks, guides, opener and other hardware may need to be removed or assessed as part of the project.
The existing opening should then be treated as the starting point for the new installation rather than assuming the replacement system will use exactly the same configuration.
New Garage Opening
- Opening and clearances are assessed
- Required tracks or guides are positioned
- New lifting hardware is installed
- The door is fitted and aligned
- Automation can be integrated where required
Existing Garage Door Replacement
- The existing door and hardware are inspected
- Old components are removed where required
- The exposed opening is checked
- The new system is installed for the actual opening
- The completed replacement is tested as a new system
The existing installation can be assessed before the replacement work is quoted.
What Happens During Garage Door Installation?
The installation progresses from preparing the opening to mounting the hardware, fitting the door and commissioning the finished system. Each stage depends on the previous one being correctly positioned and aligned.
Can an Automatic Opener Be Installed With the New Garage Door?
Yes, where automation is required, a compatible opener can be installed as part of the garage door installation. This allows the door and opener to be planned as one operating system rather than treating automation as a separate addition after the door has been fitted.
The opener installation depends on the garage door configuration, available mounting space, door travel and compatibility with the completed installation.
Opener Installation Checks
Available mounting space
Door movement and travel
Opener compatibility
Control setup
Final automatic operation
For information about automatic opener options, visit our garage door openers page.
Automation should suit the movement and configuration of the installed garage door.
What Should Be Checked Before a New Garage Door Is Handed Over?
The completed garage door should be tested as an operating system before the installation is considered finished. The door needs to travel through its intended path without the individual components working against each other.
Manual Door Checks
- Door moves through its full operating path
- Tracks or guides remain correctly positioned
- Door alignment is checked
- Lifting components operate with the door
- Closing position is checked against the opening
Automatic Door Checks
- Opener moves the installed door correctly
- Opening and closing travel is set
- Controls are checked
- Applicable opener safety functions are tested
- Final automatic operation is confirmed
What Affects the Cost of Garage Door Installation?
The installation cost depends on the work required at the property, not only the price of the garage door. Door size, the existing opening, removal work, hardware requirements, automation and site access can all change the installation scope.
Because those conditions vary between garages, this page does not apply a generic installation price where the required work has not been assessed.
New vs Replacement Installation
Replacing an existing door can involve removal work and assessment of the exposed garage opening before the new system is fitted.
Door Size and Configuration
The dimensions and operating configuration affect the amount and type of hardware required for installation.
Opening Preparation
Installation requirements can change if the opening has restricted clearances or requires additional preparation before the door can be mounted.
Existing Hardware
Tracks, guides, brackets or an old opener may need to be removed rather than incorporated into the replacement system.
Automatic Opener Installation
Installing and commissioning a compatible opener adds additional equipment and installation work to the project.
Site Access
The physical access available around the garage can affect how easily existing components can be removed and new components positioned.
Request a quote based on the garage opening and the actual installation work required.
How Should You Prepare the Garage for Installation?
The most useful preparation is to provide clear access to the garage opening and the area where the door hardware will be installed. This gives the installer room to remove an existing system where necessary and work around the opening and ceiling.
Move Vehicles Away
Keep vehicles clear of the garage entrance and working area before installation begins.
Clear the Opening
Remove stored items from beside the garage doorway where guides, tracks or brackets may need to be installed.
Provide Internal Access
Where tracks or an opener extend into the garage, the relevant ceiling and internal working area should remain accessible.
Tell Jim’s Garage Doors when requesting the installation quote so the door and opener requirements can be considered together rather than after the door has already been installed.
Garage Door Installation FAQs
Installation-specific questions about preparing the opening, replacing existing hardware and commissioning a new garage door.
What measurements are needed for garage door installation?
The garage opening width and height are important, but the installation also depends on headroom, side clearance, internal ceiling space and the mounting surfaces around the opening. These surrounding measurements determine where the operating hardware can be installed.
Can a new garage door use the existing tracks or guides?
Existing hardware should be assessed rather than automatically reused. The new garage door and operating system need compatible tracks, guides, brackets and lifting components, so suitability depends on the actual replacement installation.
Does the old garage door need to be removed before installation?
For a replacement installation, the existing garage door and any hardware that will not form part of the new system need to be removed so the opening can be prepared for the replacement door.
Can a garage door opener be installed at the same time?
Yes. Where automatic operation is required, a compatible opener can be included as part of the garage door installation and commissioned with the completed door.
Does an automatic garage door installation need electrical power?
An automatic opener requires an appropriate power supply. The opener location and installation requirements should therefore be considered when planning an automated garage door.
How long does garage door installation take?
The time required depends on the installation itself, including the door configuration, whether an existing door must be removed, site access, opening preparation and whether an automatic opener is being fitted. The scope should be assessed before applying a specific installation time.
Can a garage door be installed if the opening is not perfectly level?
The condition of the opening and floor needs to be assessed because variation can affect alignment and how the closed door meets the garage entrance. The appropriate installation approach depends on the actual site conditions.
Should I order the garage door before the opening is checked?
The opening and surrounding installation space should be confirmed before relying on door dimensions alone. The selected door needs to suit both the visible opening and the space required for its tracks, guides, lifting hardware and opener.
What happens after the new garage door is installed?
The completed door is aligned and tested for operation. If an automatic opener has been installed, its travel, controls and applicable operating functions are also checked before handover.
Can Jim’s install a replacement door where an old automatic opener is already fitted?
The existing opener should first be assessed for compatibility with the replacement garage door. An opener that was suitable for the previous system should not automatically be assumed to suit a different door installation.
